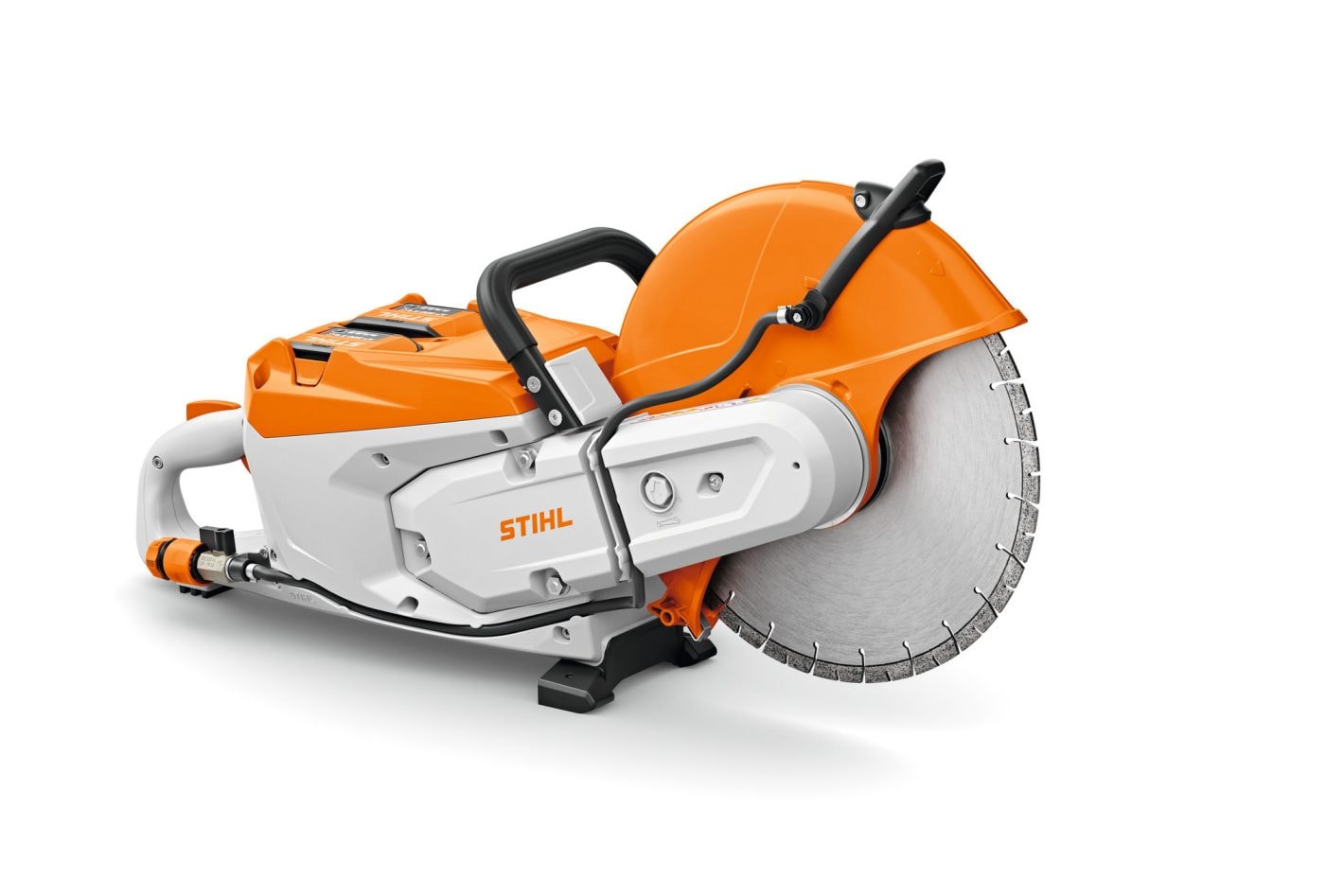

Stihl TSA 500 Battery-Powered Cut-Off Saw

The battery-powered STIHL TSA 500 B is an extremely powerful cut-off machine in the STIHL AP system, developed for professional users who require high cutting capacity, precision and robust operation – completely without exhaust fumes. The machine is powered by two STIHL AP 500 S batteries and reliably cuts materials such as steel, concrete, brick and natural stone. Thanks to emission-free operation, the TSA 500 B is also a very good choice for indoor work where the working environment and ventilation are particularly important.

NOTE! Without battery and charger.

Extreme performance – completely without exhaust fumes

The TSA 500 B combines professional performance with the great advantage of battery operation: you work without exhaust fumes and with a lower noise level. This makes the machine ideal for construction environments, renovation, gardening, rescue services and fire brigades – especially when working in sensitive areas or near people. With the right cutting disc, it handles a wide range of tasks and materials without compromising on cutting results.

EC motor with smooth running and low vibrations

The powerful EC motor is virtually wear-free and designed for high efficiency. It operates quietly, smoothly and with low vibrations, which improves both precision and comfort during longer work sessions. An electronic control system also ensures that the machine delivers optimum performance throughout the battery's operating time.

Constant power with POWER BOOST and CONSTANT POWER

The STIHL TSA 500 B is built to deliver when the load is high. With POWER BOOST, the tool and battery work together via intelligent electronics to provide maximum power for the task, while the system protects the battery's lifespan during intensive use. With CONSTANT POWER, a consistently high power level is maintained even when the battery starts to run low – giving you more predictable cutting from start to stop.

Cutting depth 125 mm with 350 mm cutting discs

The machine is designed for 350 mm cutting discs and can handle a maximum cutting depth of 125 mm. This makes the TSA 500 B particularly suitable for demanding cuts where you want both cutting power and control. STIHL's range of accessories includes several cutting discs, including diamond cutting discs, for different materials and applications. Always choose the right size cutting disc for the material you are cutting for the best safety and results.

Disc brake with energy recovery – faster workflow

A clear advantage is the disc brake with energy recovery. It brakes the cutting disc in a matter of seconds, allowing you to resume work almost immediately. During braking, the kinetic energy is converted into electrical energy that is fed back to the battery – a smart feature that contributes to better operating time.

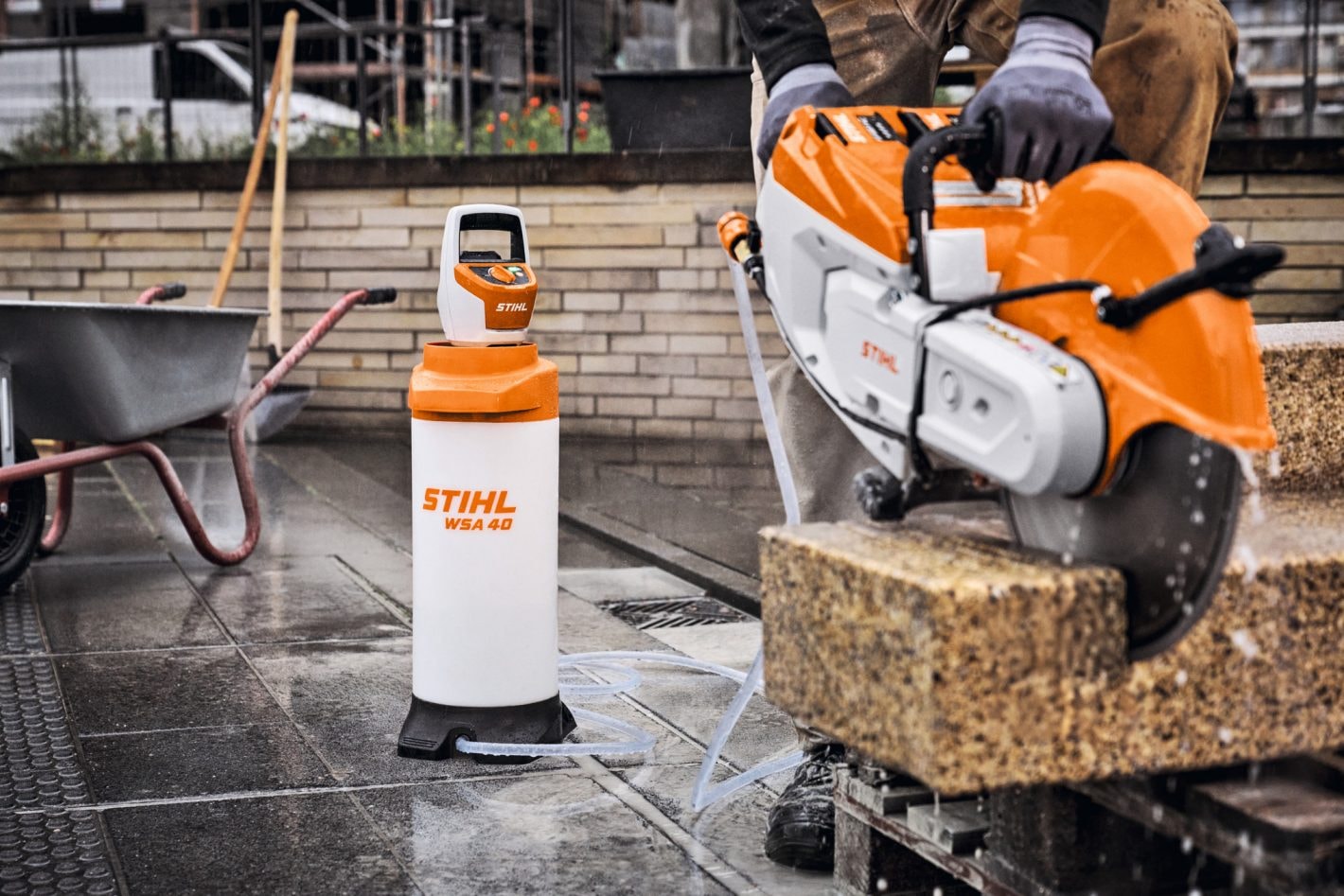

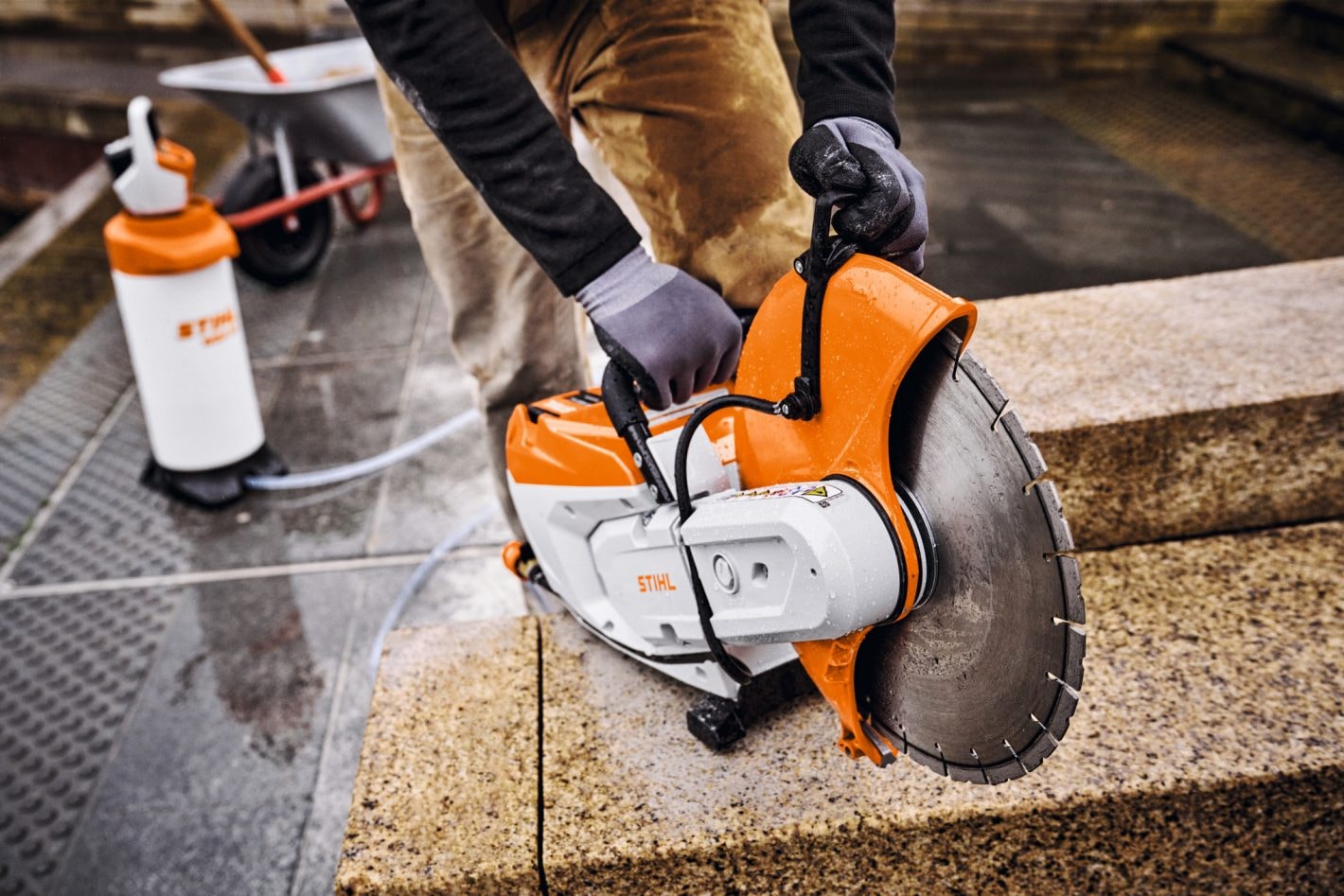

Effective dust binding with integrated water connection

The TSA 500 B has a standard water connection, which makes it easy to maintain a permanent water supply while working. The water is used to bind dust and cool the cutting surface, which improves the working environment and helps to keep cutting efficient – especially when cutting mineral materials such as concrete and natural stone.

Magnesium guard with good visibility and robust design

The adjustable magnesium guard with integrated water supply provides effective protection and removes dirt in a controlled manner. At the same time, the design provides a very good view of the cutting disc, which facilitates precision work. The die-cast magnesium construction also makes the guard both lightweight and very robust.

Magnetic filter protects the engine when cutting metal

For a long service life and maintained performance, the TSA 500 B is equipped with a STIHL magnetic filter. Magnets in the cooling air flow capture ferromagnetic particles before they reach the engine – especially important when cutting metal. The filter is easy to remove, clean and replace when needed.

Ergonomics and controls where you need them

The cutter is easy to handle thanks to the ADVANCE PLUS module, where you have all the controls gathered within easy reach. Together with ergonomic handles and a stable construction, you get a machine that provides precise control when cutting and a safer, more relaxing working position.

IPX4-rated for tough working conditions

The STIHL AP system is developed for demanding, professional use even in challenging weather. The TSA 500 B is certified according to IPX4, which means protection against splashing water from all angles - practical when work must continue even in rain and damp environments.

Summary - why professionals choose the STIHL TSA 500 B

The STIHL TSA 500 B is a strong choice for those who want an extremely powerful, battery-powered cut-off saw with emission-free operation, constant high power, fast disc brake with energy recovery, effective dust collection and robust build quality. The result is a cleaner working environment, smoother cutting and a more efficient workflow – regardless of whether you work on a construction site, in a facility, in the emergency services or indoors.
